Description
11-step aluminum wedge for determining the course of the sensitometric curve, the sensitivity and the mean gradient of X-ray films according to DIN 6867/1.
11 steps with a width of 12mm each.
The height of the first step is 5mm, thereafter the gradation is 3mm per step.
Dimensions: (L x W x H) 132mm x 50mm x 35mm

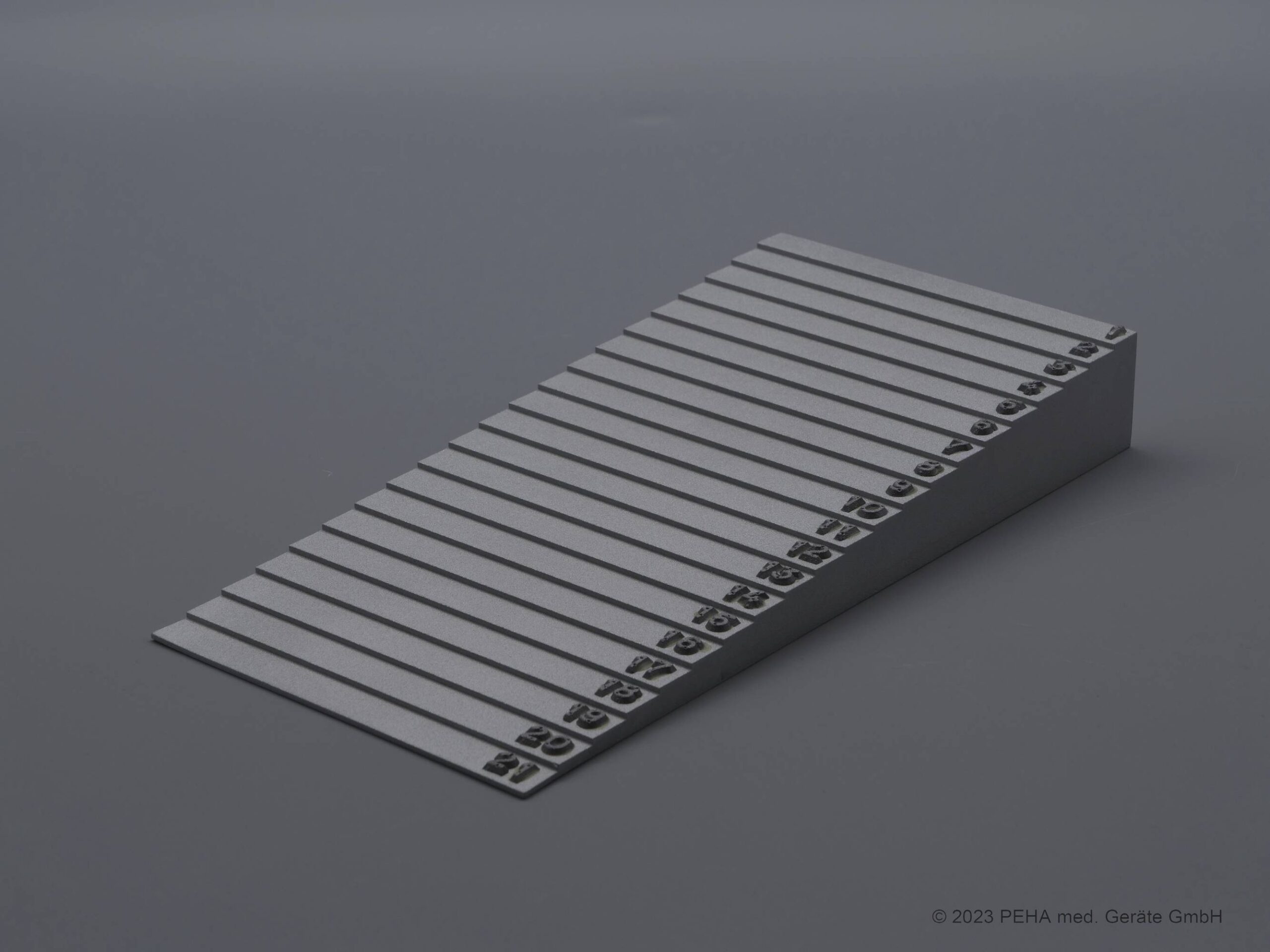

As well available in the version with 21 steps:
21 steps with a width of 11mm each.
The gradation is 1.5mm per step.
With marking of each step.
Dimensions: (L x W x H) 230mm x 112mm x 31.5mm
Special aluminum step wedges can be custom made and are available on request.
